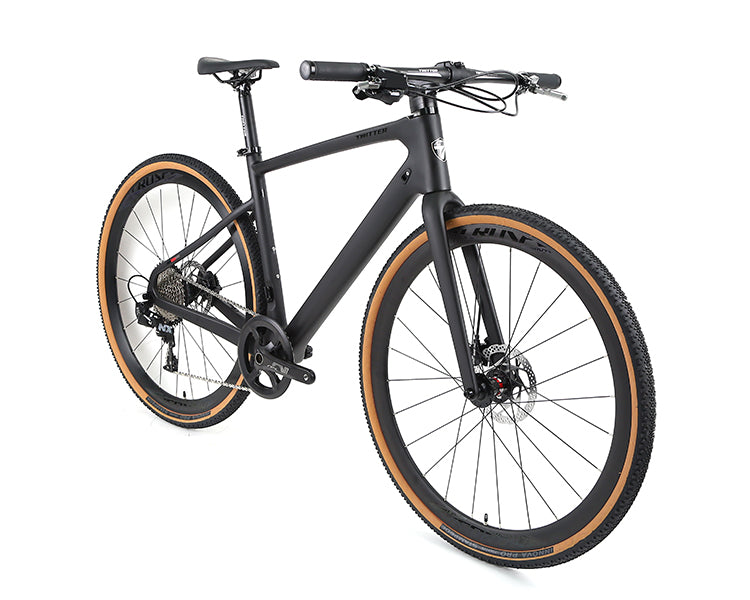

GRAVEL V1 - PB (Hybrid) - Carbon Fiber Gravel Bike
The Gravel V1-PB is a high-performance hybrid gravel bike designed for riders who demand versatility, endurance, and strength. Built around a high-modulus carbon fiber frame and available in three drivetrain configurations, SRAM NX 1×11-Speed, SHIMANO Deore 1×12-Speed, and SHIMANO XT 2×12-Speed — the V1-PB adapts perfectly to your riding style.
Key Specifications
-
Wheel Size: 700C
-
Frame Height: Multiple sizes available
-
Bike Color: You can choose any color from our catalog
-
Net Weight: 9.9 kg with alloy wheels
Frame & Structure
-
Frame: Gravel V1 (Disc & Thru-Axle 12×142), high-modulus carbon fiber, XC design, internal cable routing, matte or gloss finish with UV decals
-
Fork: Gravel V1 (Disc & Thru-Axle 12×100), high-modulus carbon fiber, 700C
-
Seat Post: High-modulus carbon fiber, 31.6×350 mm
-
Clampss: Aluminum alloy, quick release (34.9 mm)
Handlebar & Contact Points
-
Handlebar Set: Aluminum alloy, matte finish, handlebar 31.8×720, stem 80 mm
Drivetrain & Transmission
| Component | Deore 12V | XT 2×12V | SRAM NX 1×11V |
|---|---|---|---|
| Derailleur Lever | SHIMANO DEORE M6100-12S | SHIMANO XT M8100-2×12S | SRAM NX-11S |
| Front Derailleur | None | SHIMANO XT M8100-2S | None |
| Rear Derailleur | SHIMANO DEORE M6100-12S | SHIMANO XT M8120-12S | SRAM NX-11S |
| Crankset | Alu alloy, Hollow, 36T | RS, Alu alloy, Hollow, 28–38T | Alu alloy, Hollow, 42T |
| Cassette | 12S, 11–50T | 12S, 11–42T | 11-speed, 11–42T |
Braking System
-
Brakes: Flat-mount, full hydraulic disc, 160/160 mm rotors
Wheelset & Tires
-
Rims: Aluminum alloy AL7005, double wall, matte finish, W19×H30 mm × 700C
-
Tires: 700×38C
- Upgrade Option: For a painted, stylish wheel upgrade, create a note before checkout for $20
What`s included
-
PC bottle cage + Tools, TWITTER Manual + Warranty card
